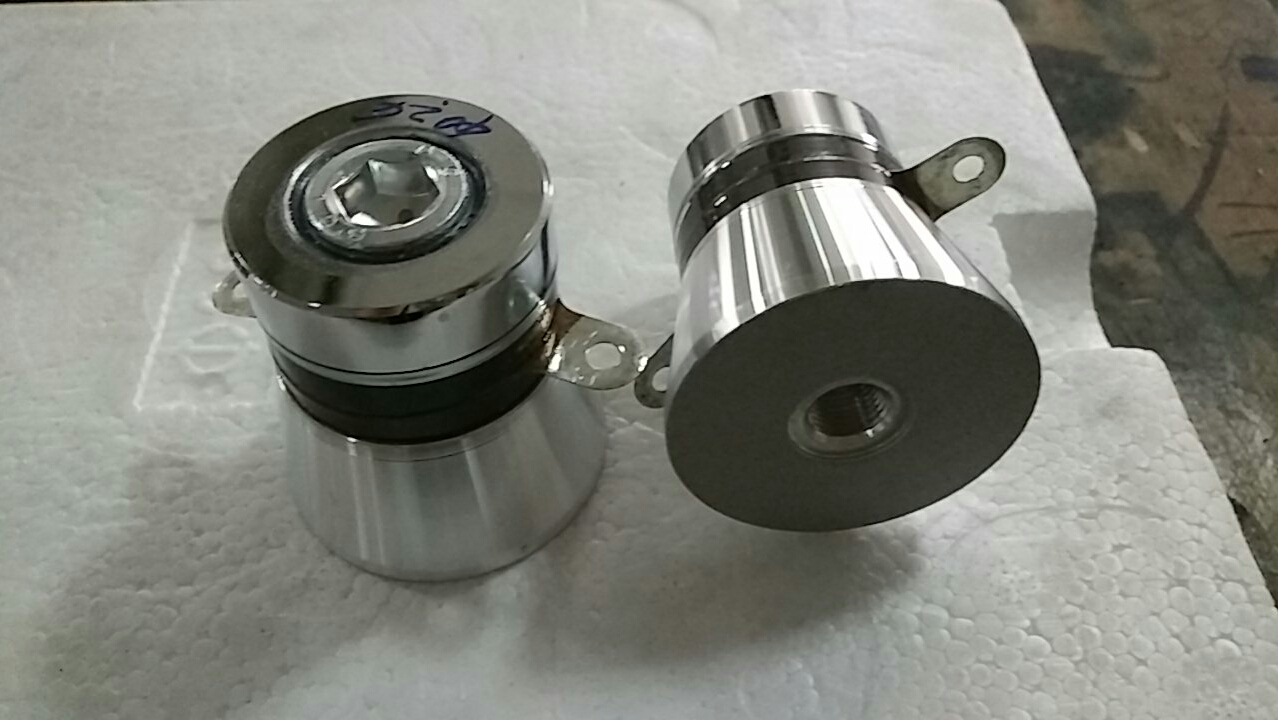

50w 40k Pzt Ultrasonic Sensor Cleaning
Description:
Ultrasonic transducers are widely used, and they are divided into
industry, agriculture, transportation, life, medical care and
military according to the application industries. According to the realized functions, it is divided into ultrasonic
processing, ultrasonic cleaning, ultrasonic detection, detection,
monitoring, telemetry, remote control, etc.; according to the
working environment, it is divided into liquid, gas, living body,
etc.; according to the nature, it is divided into power ultrasonic,
detection ultrasonic, ultrasonic imaging, etc. .
The application of the ultrasonic transducer is very extensive, it
according to the application of the industry is divided into
industry, agriculture, transportation, life, medical and military
etc. According to the functions are divided into ultrasonic
machining, ultrasonic cleaning, ultrasonic detection, testing,
monitoring, remote sensing, remote control, etc.; According to the
working environment is divided into liquid, gas, biology, etc.;
According to the nature of the divided into power ultrasound and
detection of ultrasonic, ultrasonic imaging, etc.
Specifications:
Type |
Length(mm) |
Weight (g) |
Frequency(KHz)±4% |
Resonance Impedance (Ω) |
Static Capacity (pF)±10% |
Input Power(W) |
CCH-7145D-20LA PZT-8
| 94
| 900
| 20
| ≤20
| 5200
| 100
|
| CCH-6645D-25LB PZT-4 | 77
| 717
| 25
| ≤20
| 6800
| 100
|
| CCH-6650D-28LB PZT-4 | 69
| 746
| 28
| ≤20
| 7900 | 120
|
| CCH-6645D-28LB PZT-8 | 66
| 625
| 28
| ≤20
| 5200
| 100
|
| CCH-6645D-28LB PZT-4 | 66
| 614
| 28
| ≤20
| 6800
| 100
|
| CCH-6645D-30L PZT-8 | 64
| 551
| 30
| ≤20
| 5200 | 100
|
| CCH-5938D-25LB PZT-4 | 77
| 530
| 25
| ≤20
| 4900
| 60
|
| CCH-5938D-28LB PZT-8 | 68
| 470
| 28
| ≤20
| 3700
| 60
|
| CCH-4535D-28ZB PZT-4 | 73
| 407
| 28
| ≤20
| 3950 | 50
|
| CCH-4838D-33LB PZT-8 | 62
| 420
| 33
| ≤20
| 4700
| 60
|
| CCH-4938D-40LA PZT-8 | 55
| 307
| 40
| ≤20
| 3700
| 60
|
| CCH-4538D-40ZB PZT-4 | 57
| 301
| 40
| ≤20
| 4700
| 60
|
| CCH-4535D-40LB PZT-4 | 48
| 254
| 40
| ≤20
| 4300 | 50
|
| CCH-4535D-40ZB PZT-4 | 53
| 234
| 40
| ≤20
| 4200 | 50
|
| CCH-3830D-54LA PZT-4 | 36
| 132
| 54
| ≤20
| 3500 | 35
|
Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and
Technology Co., Ltd is a professional manufacturer in ultrasonic
transducers, ultrasonic equipment and piezoelectric ceramics.
We have close cooperation with the institute of acoustics, Chinese
Aceademy of Science, Tsinghua University and other scientific
research institutes and work together with many renowned experts in
the ultrasonic industry within China. With a microcomputer control
processing center and possession of advanced power ultrasonic
inspection equipment, our R& D capacity in the field of
ultrasonic products is superior to that of our competitors.
Payment:
We accept paypal or T/T, western union etc.
Shipping:
Normally if your quantity is not too much, we ship out by Fedex
express economy. Or as your requested by sea or other express,
according to your quantity.
Certification:
CE, ROSH, ISO9001
