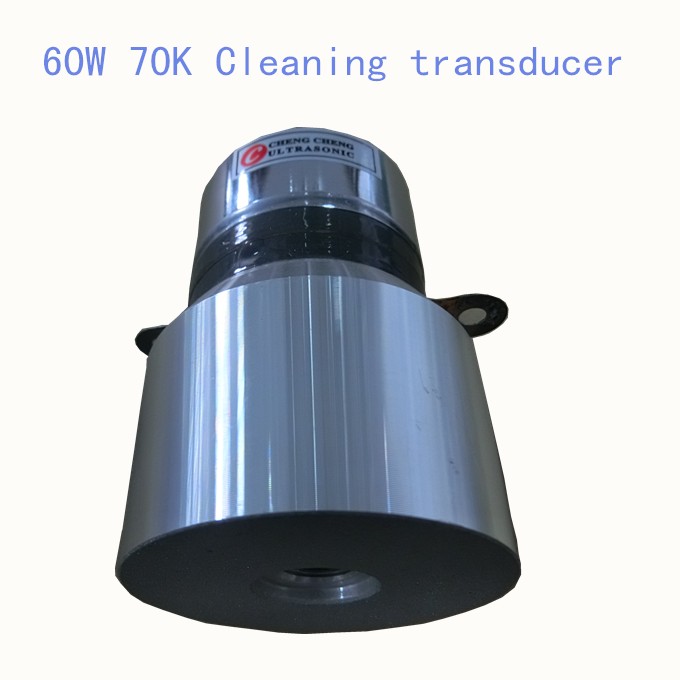

Aluminum 60w 68k Ultrasonic Cleaning Transducer For Cleaning Tank
Description:
Ultrasonic vibration transducer is one kind of piezoelectric
transducers. It comprises a radiation head, an electrode, cap,
prestressed bolt, piezoelectric chip and an insulating tube. The
ultrasonic vibration transducer is widely used in vibrating screen
equipment factory (so now the vibrating equipment can have both the
mechanical and ultrasonic vibration).
The application of the ultrasonic transducer is very extensive, it
according to the application of the industry is divided into
industry, agriculture, transportation, life, medical and military
etc. According to the functions are divided into ultrasonic
machining, ultrasonic cleaning, ultrasonic detection, testing,
monitoring, remote sensing, remote control, etc.; According to the
working environment is divided into liquid, gas, biology, etc.;
According to the nature of the divided into power ultrasound and
detection of ultrasonic, ultrasonic imaging, etc.
Specifications:
Type |
Length(mm) |
Weight (g) |
Frequency(KHz)±4% |
Resonance Impedance (Ω) |
Static Capacity (pF)±10% |
Input Power(W) |
CCH-7145D-20LA PZT-8
| 94
| 900
| 20
| ≤20
| 5200
| 100
|
| CCH-6645D-25LB PZT-4 | 77
| 717
| 25
| ≤20
| 6800
| 100
|
| CCH-6650D-28LB PZT-4 | 69
| 746
| 28
| ≤20
| 7900 | 120
|
| CCH-6645D-28LB PZT-8 | 66
| 625
| 28
| ≤20
| 5200
| 100
|
| CCH-6645D-28LB PZT-4 | 66
| 614
| 28
| ≤20
| 6800
| 100
|
| CCH-6645D-30L PZT-8 | 64
| 551
| 30
| ≤20
| 5200 | 100
|
| CCH-5938D-25LB PZT-4 | 77
| 530
| 25
| ≤20
| 4900
| 60
|
| CCH-5938D-28LB PZT-8 | 68
| 470
| 28
| ≤20
| 3700
| 60
|
| CCH-4535D-28ZB PZT-4 | 73
| 407
| 28
| ≤20
| 3950 | 50
|
| CCH-4838D-33LB PZT-8 | 62
| 420
| 33
| ≤20
| 4700
| 60
|
| CCH-4938D-40LA PZT-8 | 55
| 307
| 40
| ≤20
| 3700
| 60
|
| CCH-4538D-40ZB PZT-4 | 57
| 301
| 40
| ≤20
| 4700
| 60
|
| CCH-4535D-40LB PZT-4 | 48
| 254
| 40
| ≤20
| 4300 | 50
|
| CCH-4535D-40ZB PZT-4 | 53
| 234
| 40
| ≤20
| 4200 | 50
|
| CCH-44938D-68ZB PZT-8 | 80
| 460
| 68
| ≤20
| 3800 | 60
|
