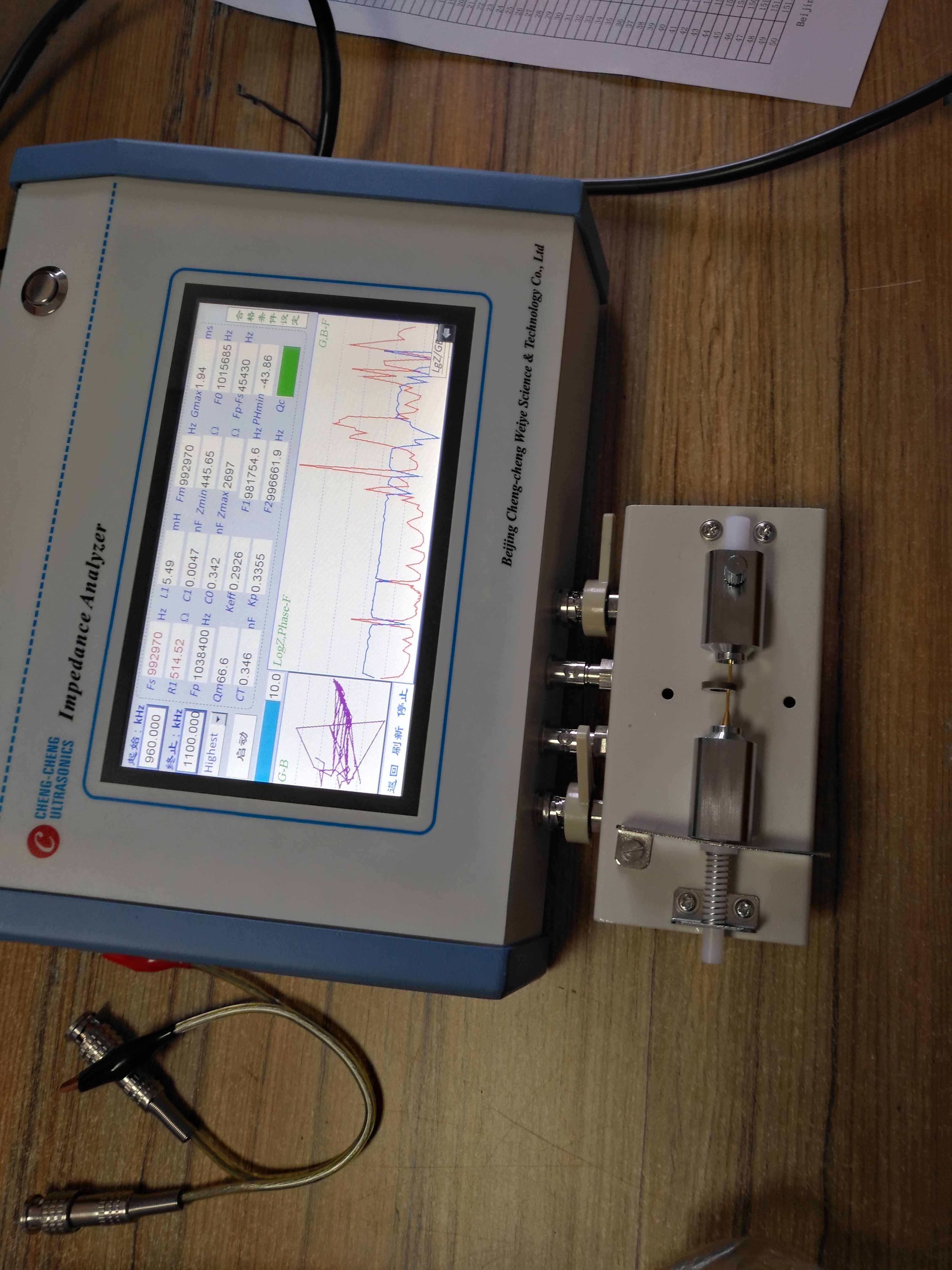

Ultrasonic Impedance Analyzer Testing Frequency, Impedance, Static Capacity

Portable Touch screen 7.8inch

Outer dimension: 24x19x10cm

Ultrasonic impedance Analyzer is developed by Tsinghua University of department of Automation and Institute of acoustics, Chinese Academy of Sciences. And mainly used in testing of piezoelectric ultrasonic device.

1. Dimension size: 24cmx14cmx (front 5cm, back 10cm), weight:1.95kgs. It is most portable ultrasonic impedance analyzer.

2. Touch screen, no pressing button,display all parameters and graphics, more intuitive.

3. Fast testing speed, it takes 10 seconds to test 2000 points one times.

4. The maximum testing frequency can be 5MHZ.

5. SIEMENS automatic patch manufacturing process, three years quality guarantee period.

Resonance Frequency: Fs

Half Power Frequency: F1 and F2

Maximum real admittance at Fs: Gmax

Dynamic Resistance: R1

Anti resonance frequency: Fp

Mechanical quality factor: Qm

Free capacitance: CT

Dynamic inductance: L1

Dynamic capacitance: C1

Static capacitance: Co

electromechanical coupling coefficient: Keff and Kp

Maximum real impedance at Fp: Zmax

Application:

Including: piezoelectric ceramic transducer, ultrasonic cleaning machine, ultrasonic plastic welding, acoustic, magnetostrictive materials, ultrasonic grinder, ultrasonic atomization, ultrasonic scaling, reversing radar, ultrasonic ranging, ultrasonic emulsification, ultrasonic cleaning, ultrasonic motor, and all other devices and equipment used in piezoelectric and ultrasonic.

Service

Your inquiry related to our product & price will be replied within 24hours.
· Well-trained & experienced staff are to answer all your inquiries in English of course.
· Working time: 8:30am - 5:30pm, Monday to Friday (UTC+8).
· OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
· Your business relationship with us will be confidential to any third party.
· Good after-sale service offered, please get back if you got question.

Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional

manufacturer

in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.

Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer specializing in ultrasonic transducers, ultrasonic apparatus and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.
Our headquarter is located in Beijing, China. Our manufacturing base is in Baoding, Hebei province. Cheng-cheng Weiye also has two branches in Shenzhen and Zhangjiagang and two sales agents in Japan and the USA. At present, there are five departments of the company comprising R&D, Production, Domestic Sale, Export and After-sales service.
We have close cooperation with the Institute of Acoustics, Chinese Academy of Sciences, Tsinghua University and other scientific research institutes and work together with many renowned experts in the ultrasonic industry within China. With a microcomputer control processing center and possession of advanced power ultrasonic inspection equipment (HP-4294A for example), our R&D capacity in the field of ultrasonic products is superior to that of our competitors.
All of our products are manufactured according to the ISO standard, ensuring our product quality and we were also awarded RoSH certification.
We energetically develop international markets while keeping our products in a strong competitive position with a large share of the domestic market. Currently, our products are exported to the United States, Australia, France, Slovakia, Turkey, Singapore, India and Hong Kong and other locations.
Relying on our strong technical ability in research and development in professional ultrasonics, we ensure our customers can feel confident in buying "Cheng-cheng Weiye" products.
We would like to create, together with you, a bright future in the ultrasonic application field.
