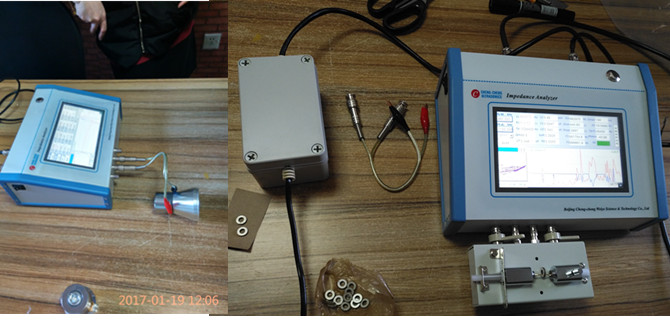

    CE Ultrasonic Ananlyzer For Impedance And Frequency Of Transducer And Piezo Ceramics

    Ask Lasest Price
    Brand Name : CCWY
    Model Number : CCWY
    Certification : CE ROSH TUV
    Price : $2000-4000
    Payment Terms : T/T
    Supply Ability : 20.000.PER MONTH
    Delivery Time : On stock
    • Product Details
    • Company Profile

    CE Ultrasonic Ananlyzer For Impedance And Frequency Of Transducer And Piezo Ceramics


    CE Ultrasonic Ananlyzer For Impedance And Frequency Of Transducer And Piezo Ceramics


    Frequency Range: 1KHZ-1MHz

    Min.Frequency Step: 0.1HZ

    Measurement accuracy: < 0.5%

    Measurement speed: five seconds per pieces(equivalent to 600 scan dots)

    Frequency accuracy: ±5ppm

    Phase Accuracy: 0.15 degree

    Enviroment temperature: 10-40 cº

    Impedance Range: 1Ω~1MΩ

    Frequency step: less than 1MHZ


    Resonance Frequency: Fs

    Half Power Frequency: F1 and F2

    Maximum real admittance at Fs: Gmax

    Dynamic Resistance: R1

    Anti resonance frequency: Fp

    Mechanical quality factor: Qm

    Free capacitance: CT

    Dynamic inductance: L1

    Dynamic capacitance: C1

    Static capacitance: Co

    electromechanical coupling coefficient: Keff and Kp

    Maximum real impedance at Fp: Zmax


    TypeC220C320
    Frequency Range1KHZ-500Khz1Khz-1Mhz
    Measurement IndexAll parameter, graphics
    Measurement Accuracy< 1%< 0.5%
    Measurement Speed

    10 second/piece(equivalent to 600 scan dots

    )

    5 second/piece(equivalent to 600 scan dots

    )

    Frequency Accuracy±15ppm±5ppm
    Phase Resolution0.15 degree0.15 degree
    Enviroment temperature10-40 cº10-40 cº
    Impedance Range1Ω~1MΩ1Ω~1MΩ
    Frequency Step0.1Hz~any0.1Hz~any
    ApplicationUltrasonic equipment testing, ultrasonic cleaning, ultrasonic welding, ultrasonic medicalInspection production line of piezoelectric ceramic below 1MHzø

    Service


    Your inquiry related to our product & price will be replied within 24hours.
    · Well-trained & experienced staff are to answer all your inquiries in English of course.
    · Working time: 8:30am - 5:30pm, Monday to Friday (UTC+8).
    · OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
    · Your business relationship with us will be confidential to any third party.
    · Good after-sale service offered, please get back if you got question.


    Company introduction:


    Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional

    manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
    Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new

    product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy

    task. This product has been widely used in distillation, mix and mill for various chemical procedures

    and has received much praise from our customers.


    Payment:

    We accept paypal or T/T, western union etc.

    Shipping:

    Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.

    Certification:

    CE, ISO9001, ROSH
