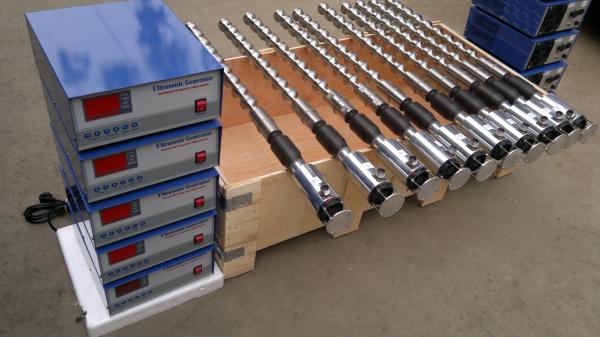

Titanium Ultrasonic Reactor Long Horn Generator And Transducer
The powerful ultrasonic happened in the liquid, with the change of
ultrasonic pressure,
liquid will appear cavitation bubble which is in the generation,
compression,
cracking process to form thousands of degrees, thousands of high
pressure high temperature,
high pressure reaction field. Using the ultrasonic reaction field,
the conventional methods used so far and
unable to achieve compounds synthesis variable as possible. Have
shown that ultrasonic wave has
obviously promote the effect of chemical reaction, is expected to
improve the technical level of the
chemical,
pharmaceutical and food industry, and open up a new field of
technology, new technological changes
induced
by utilizing ultrasonic wave.
Description:

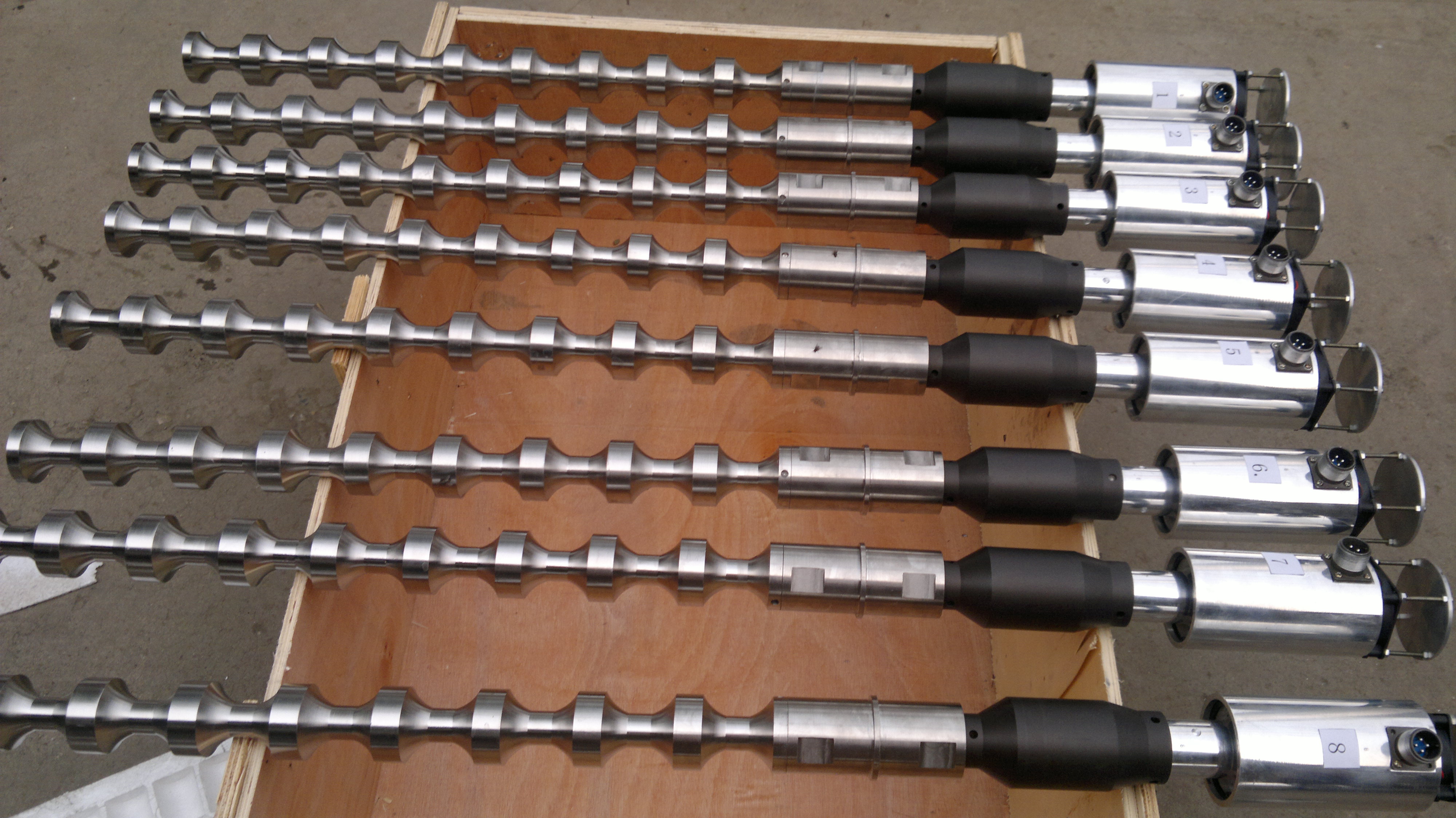

Since cavitation occurs on all outside areas of the tube,
ultrasonic energy distribution in the tank
is very uniform, with an excellent cleaning effect.
The output power of the tubular transducer equipment is not
affected by the depth of solution, capacity
of bath,
variation of solution temperature and so on.
Thanks to structural tubular equipment, the application range is
wider than a conventional transducer
equipment. It is best matched to vacuum and high pressure cleaning
and chemical processing.
It has one and half to two times the life can be maintained compare
with conventional transducer
equipment.
The round shape makes it possible to install very simply in every
place so that the designing of the bath is
simple.
The tube structure guarantees watertightness.
Applications:
It is widely used in the fields of ultrasonic cleaning,
biochemistry, food, chemical and pharmaceutical
industry.
In biochemistry industry, the tubular transducer equipment can be
used for emulsification, separation,
homogenization, refining and catalyzing reaction and it can
increase production capacity.
The tubular transducer equipment plays an important role in the
even stirring of homogenates
in food processing. In the chemical industry, it is suitable for
cleaning pipeline, tanks and kettles.
The catalyzing effect of ultrasonic is quite obvious when the
tubular transducer equipment used
in the refinement of scavenge oil and palm oil to biodiesel, as the
efficiency can be improved more than
tenfold. Therefore, it will have expansive applications in the
petro-chemical industry.
Tubular Equipment Type | Frequency (KHz) | Ultrasound Output(W) | Calabash Length (mm) | Length (mm) | Diameter (mm) | Static Capacity (pF±10%) |
CC-1 | 15-28 | 1000 | 140 | 500 | 50-55 | 68000 |
CC-2 | 15-28 | 1100 | 260 | 620 | 50-55 | 68000 |
CC-3 | 15-28 | 1200 | 430 | 790 | 50-55 | 68000 |
CC-4 | 15-28 | 1300 | 597 | 957 | 50-55 | 68000 |
CC-5 | 15-28 | 1500 | 763 | 1123 | 50-55 | 68000 |
CC-6 | 15-28 | 2000 | 940 | 1300 | 50-55 | 132000 |
Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and
Technology Co., Ltd is a professional
manufacturer in ultrasonic transducers,
ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular
transducer equipment into a
new product that turns the extreme inconvenience brought about by
pipeline and vacuum cleaning into
an easy task. This product has been widely used in distillation,
mix and mill for various chemical
procedures
and has received much praise from our customers.
Payment:
We accept paypal or T/T, western union etc.
Shipping:
Normally if your quantity is not too much, we ship out by Fedex
express economy. Or as your
requested by
sea or other express, according to your quantity.
Certification:
CE, ISO9001, ROSH
