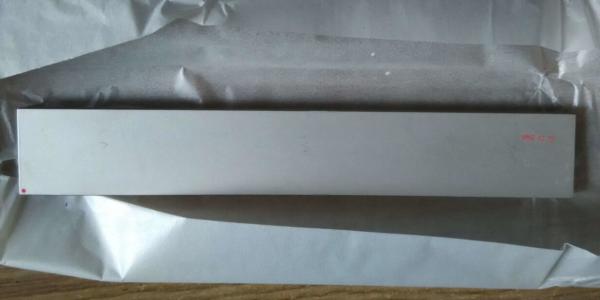

Strip Shape Piezo Ceramics Size OEM
The piezoelectric sensor is the direct use of piezoelectric effect
and inverse piezoelectric effect of piezoelectric material, the
former is charge by the piezoelectric element generated by
reflecting the size or change of measurement, which is measured by
changes reflect changes in the piezoelectric element vibration or
deformation.
Specifications
| Dimension(mm) | Capacity C (pF) | Weak Field Dissipatio Tgδ (12v) | Strong Field Dissip ationTg δ (400v) | Radial Frequency
Fr(KHz)
| Reso nance Impedance
Zm (Ω ) | Thick Fre quency
Ft (KHz) | Cou pling Modulus
Kr (%) | Qu ality Factor
Qm |
Φ38ｘΦ15 ｘ5 | 1750±10% | ≤0.5% | ≤1.0% | 43.4±5% | ≤15 | 410 | ≥46 | ≥800 |
Φ40ｘΦ15 ｘ5 | 1970±10% | ≤0.5% | ≤1.0% | 42.8±5% | ≤15 | 410 | ≥45 | ≥800 |
Φ42ｘΦ15 ｘ5 | 2200±10% | ≤0.5% | ≤1.0% | 40±5% | ≤15 | 410 | ≥45 | ≥800 |
Φ42ｘΦ17 ｘ5 | 2110±10% | ≤0.5% | ≤1.0% | 38.8±5% | ≤15 | 410 | ≥45 | ≥800 |
Φ45ｘΦ15 ｘ5 | 2580±10% | ≤0.5% | ≤1.0% | 38.1±5% | ≤15 | 410 | ≥46 | ≥800 |
Φ50ｘΦ17 ｘ5 | 3160±10% | ≤0.5% | ≤1.0% | 34.8±5% | ≤15 | 410 | ≥45 | ≥800 |
Φ50ｘΦ17 ｘ6 | 2430±10% | ≤0.5% | ≤1.0% | 34.8±5% | ≤15 | 315 | ≥45 | ≥800 |
| Φ50ｘ3 | 5800±10% | ≤0.5% | ≤1.0% | 46±5% | ≤10 | 681 | ≥50 | ≥800 |
Competitive Advantage
Features
◊ High efficiency: high mechanical parameter Q, the transduction
efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the
high speed vibrator directly on the base of washing groove with
bolt. Compare with a magnetic expansion vibrator, its amplitude can
be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low
resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high
reliability.
Service
Your inquiry related to our product & price will be replied within
24hours.
· Well-trained & experienced staff are to answer all your inquiries
in English of course.
· Working time: 8:30am - 5:30pm, Monday to Friday (UTC+8).
· OEM & ODM projects are highly welcomed. We have strong R&D
team here to help.
· Your business relationship with us will be confidential to any
third party.
· Good after-sale service offered, please get back if you got
question.
Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and
Technology Co., Ltd is a professional manufacturer in ultrasonic
transducers,
ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular
transducer equipment into a
new product that turns the extreme inconvenience brought about by
pipeline and vacuum cleaning
into an easy task. This product has been widely used in
distillation, mix and mill for various chemical
procedures and has received much praise from our customers.
Payment:
We accept paypal or T/T, western union etc.
Shipping:
Normally if your quantity is not too much, we ship out by Fedex
express economy.
Or as your requested by sea or other express, according to your
quantity.
Certification:
CE, ISO9001, ROSH
