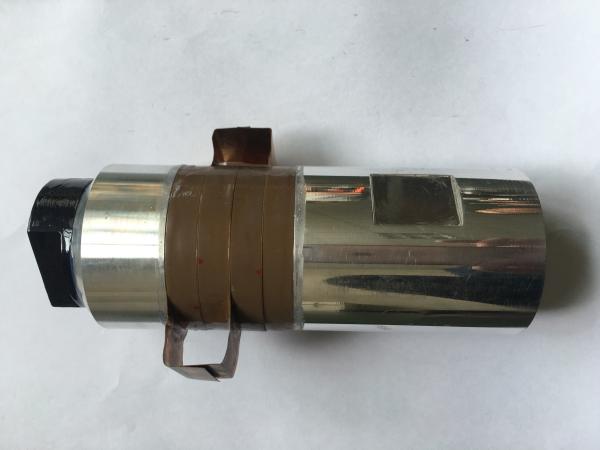

15K 2500W High Strength Ultrasonic Welding Transducer Environmental
Protection
The advantages of ultrasonic plastic welding:
1 energy saving and environmental protection equipment
2 without smoke cooling ventilation device
3 is low cost, high efficiency, easy to realize automatic
production of
4 high strength of welding, bonding
5 solder joint appearance, seamless welding, waterproof, airtight
note: thermosetting plastics cannot be ultrasonic welding.
Ultrasonic transducer is a device for converting high frequency
electric energy into mechanical energy. The electrical signal is
converted to mechanical vibration by the piezoelectric effect of
the material. Ultrasonic transducer is an energy converter, it is
the function of the input power into mechanical power (that is, the
ultrasonic) and then to pass out, and its own a small part of the
power consumption. The most important consideration of the use of
ultrasonic transducers is the matching of the input and output
ends, and the second is the mechanical mounting and mating
dimensions. The frequency of the transducer is relatively
intuitive. The frequency refers to the frequency (function)
generator, millivoltmeter, Oscilloscope by transmission line method
measured frequency, or measured by network analyzer instrument
similar frequency impedance. Commonly known as the small signal
frequency. And it corresponds to the frequency of the machine, that
is, the customer will be connected to the transducer through the
cable to the chassis, the power of the actual operating frequency
of no-load or load.
| Type | Length(mm) | Joint Bolt(mm) | Frequency(KHz) | Resonance Impedance | Capacity(pf) | Input Power(w) |
| CCH-3030D-28Z P8 | 92.1 | M10x1 | 28 | 20 | 3000 | 200 |
1.High Efficiency: of high mechanical factor. High transfer
efficiency is obtained
when working in resonance frequency.
2.Big amplitude: designed and chosen by computer, high rate in
oscillation speed and
big amplitude in front operculum.
3.Big Power: under the function of the pre-stressed force screw
rod, the piezoelectricity
ceramics can work freely in the highest level of power.
4.In good heat resistance: of small resonance impedance, less heat
produced, can be
used in a wide range of temperature with long life and high
reliability.
