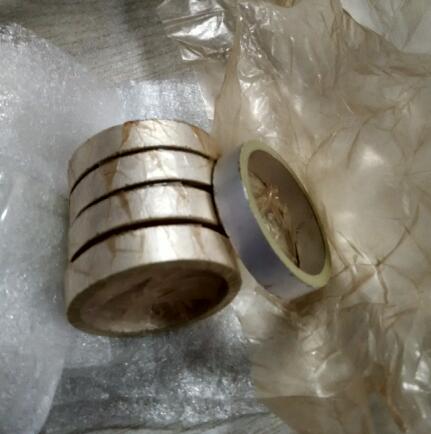

Tube and Ring Shape Piezo Ceramic Plate Two Electrodes Customized
Size
Quick Detail
32/12/5Ring Piezoelectric Ceramic:
all kinds of piezoceramics and piezoelectric ceramic.we can produce
according to the required size.
the materials have the pzt4,pzt5 ,pzt8 or other required material.
Piezoelectric Element Piezo Ceramic Plate 2200pF For Automatic
Ultrasonic Cleaner
Description
32/12/5 Ring Piezoelectric Ceramic:
◊ High efficiency: high mechanical parameter Q, the transduction
efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the
high speed vibrator directly on the base of washing groove with
bolt. Compare with a magnetic expansion vibrator, its amplitude can
be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low
resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high
reliability.
Applications
widely used in all kinds of ultrasonic sensor.ultrasonic
transducer.Medical,ultrasonic detectors and so on
Specifications
Ring Piezoelectric Ceramic:
| Dimension(mm) | Capacity C (pF) | Weak Field Dissipatio Tgδ (12v) | Strong Field Dissip ationTg δ (400v) | Radial Frequency
Fr(KHz) | Reso nance Impedance
Zm (Ω ) | Thick FrequencyFt (KHz) | Coupling Modulus Kr (%) | Quality Factor Qm |
| Φ10ｘΦ5ｘ2 | 240±10% | ≤0.5% | ≤1.0% | 153±5% | ≤15 | 1020 | ≥45 | ≥800 |
| Φ16ｘΦ8ｘ4 | 340±10% | ≤0.5% | ≤1.0% | 95.8±5% | ≤20 | 512 | ≥45 | ≥800 |
| Φ25ｘΦ10ｘ4 | 935±10% | ≤0.5% | ≤1.0% | 65.5±5% | ≤15 | 512 | ≥45 | ≥800 |
| Φ30ｘΦ10ｘ5 | 1150±10% | ≤0.5% | ≤1.0% | 58.4±5% | ≤15 | 410 | ≥45 | ≥800 |
| Φ32ｘΦ15ｘ5 | 1080±10% | ≤0.5% | ≤1.0% | 49.2±5% | ≤15 | 410 | ≥45 | ≥800 |
| Φ35ｘΦ15ｘ5 | 1430±10% | ≤0.5% | ≤1.0% | 45.5±5% | ≤15 | 410 | ≥45 | ≥800 |
| Φ38ｘΦ15ｘ5 | 1750±10% | ≤0.5% | ≤1.0% | 43.4±5% | ≤15 | 410 | ≥46 | ≥800 |
| Φ40ｘΦ15ｘ5 | 1970±10% | ≤0.5% | ≤1.0% | 42.8±5% | ≤15 | 410 | ≥45 | ≥800 |
| Φ42ｘΦ15ｘ5 | 2200±10% | ≤0.5% | ≤1.0% | 40±5% | ≤15 | 410 | ≥45 | ≥800 |
| Φ42ｘΦ17ｘ5 | 2110±10% | ≤0.5% | ≤1.0% | 38.8±5% | ≤15 | 410 | ≥45 | ≥800 |
| Φ45ｘΦ15ｘ5 | 2580±10% | ≤0.5% | ≤1.0% | 38.1±5% | ≤15 | 410 | ≥46 | ≥800 |
| Φ50ｘΦ17ｘ5 | 3160±10% | ≤0.5% | ≤1.0% | 34.8±5% | ≤15 | 410 | ≥45 | ≥800 |
| Φ50ｘΦ17ｘ6 | 2430±10% | ≤0.5% | ≤1.0% | 34.8±5% | ≤15 | 315 | ≥45 | ≥800 |
| Φ50ｘ3 | 5800±10% | ≤0.5% | ≤1.0% | 46±5% | ≤10 | 681 | ≥50 | ≥800 |
Competitive Advantage of Ring Piezoelectric Ceramic:
◊ High efficiency
◊ High amplitude:
◊ Good heat resistance
◊ Good construction:
Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and
Technology Co., Ltd is a professional manufacturer in ultrasonic
transducers, ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular
transducer equipment into a new product that turns the extreme
inconvenience brought about by pipeline and vacuum cleaning into an
easy task. This product has been widely used in distillation, mix
and mill for various chemical procedures and has received much
praise from our customers.
Payment:
We accept paypal or T/T, western union etc.
Shipping:
Normally if your quantity is not too much, we ship out by Fedex
express economy. Or as your requested by sea or other express,
according to your quantity.
Certification:
CE, ISO9001, ROSH
