P5 Silver Piezoelectric Ceramics Electrodes

Ask Lasest Price
Brand Name :	BJCCWY
Model Number :	Piezo ceramics
Certification :	ISO9001, CE, RoHs
Price :	USD1-USD 10
Payment Terms :	T/T, Western Union, Paypal
Supply Ability :	1000000
Delivery Time :	3-5 days
MOQ :	10-100PCS

Add to Cart

Product Details
Company Profile

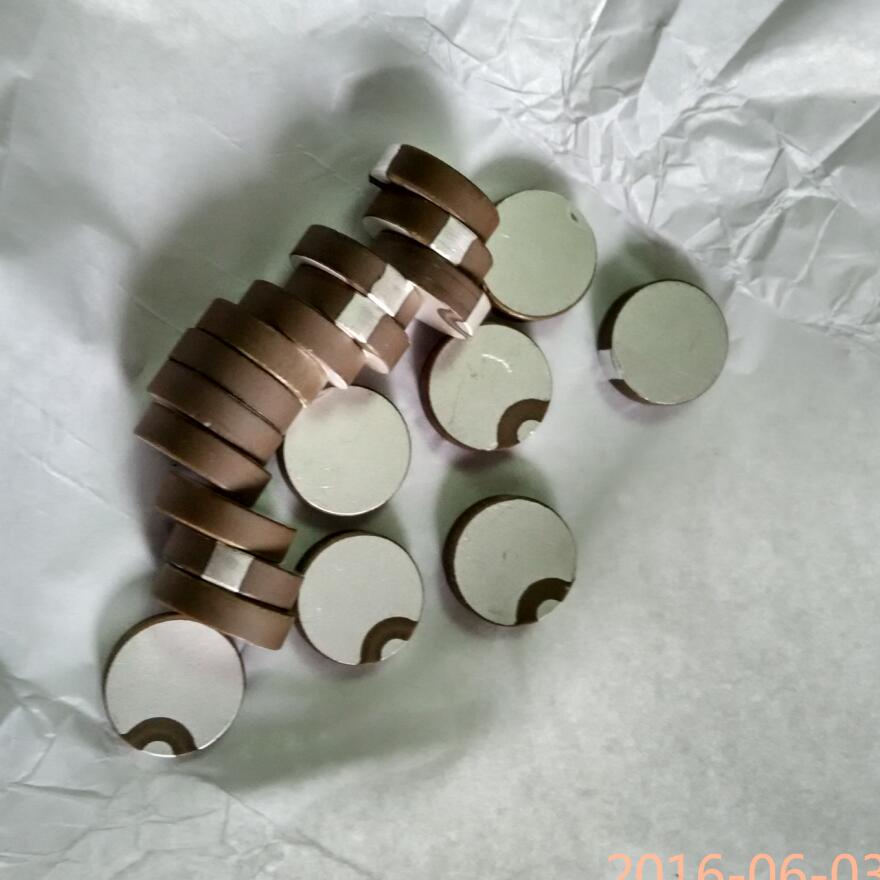

P5 Silver Piezoelectric Ceramics Electrodes

Piezoelectric Ceramics Silver Electrodes

Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer specializing in ultrasonic transducers, ultrasonic apparatus and piezoelectric ceramics.

Piezoelectric ceramic wafer is a simple and lightweight electrical device. It is widely used because of its high sensitivity,

no magnetic field spreading, no copper wire and magnet, low cost, low power consumption, and easy mass production.

Suitable for the transmission and reception of ultrasonic and infrasound waves, a relatively large area of piezoelectric ceramics

can also be used to detect pressure and vibration. The working principle is to use the reversibility of the piezoelectric effect to apply audio voltage on it to emit sound.

Dimensions (mm)	Capacity C (pF)	Weak Field Dissipation Tgδ (12v)	Strong Field Dissipation Tg δ (400v)	Radial Frequency Fr(KHz)	Resonance Impedance Zm (Ω )	Thick Frequency Ft (KHz)	Coupling Modulus Kr (%)	Quality Factor Qm
Φ10ｘΦ5ｘ2	240±10%	≤0.5%	≤1.0%	153±5%	≤15	1020	≥45	≥800
Φ16ｘΦ8ｘ4	340±10%	≤0.5%	≤1.0%	95.8±5%	≤20	512	≥45	≥800
Φ25ｘΦ10ｘ4	935±10%	≤0.5%	≤1.0%	65.5±5%	≤15	512	≥45	≥800
Φ30ｘΦ10ｘ5	1150±10%	≤0.5%	≤1.0%	58.4±5%	≤15	410	≥45	≥800
Φ32ｘΦ15ｘ5	1080±10%	≤0.5%	≤1.0%	49.2±5%	≤15	410	≥45	≥800
Φ35ｘΦ15ｘ5	1430±10%	≤0.5%	≤1.0%	45.5±5%	≤15	410	≥45	≥800
Φ38ｘΦ15ｘ5	1750±10%	≤0.5%	≤1.0%	43.4±5%	≤15	410	≥46	≥800
Φ40ｘΦ15ｘ5	1970±10%	≤0.5%	≤1.0%	42.8±5%	≤15	410	≥45	≥800
Φ42ｘΦ15ｘ5	2200±10%	≤0.5%	≤1.0%	40±5%	≤15	410	≥45	≥800
Φ42ｘΦ17ｘ5	2110±10%	≤0.5%	≤1.0%	38.8±5%	≤15	410	≥45	≥800
Φ45ｘΦ15ｘ5	2580±10%	≤0.5%	≤1.0%	38.1±5%	≤15	410	≥46	≥800
Φ50ｘΦ17ｘ5	3160±10%	≤0.5%	≤1.0%	34.8±5%	≤15	410	≥45	≥800
Φ50ｘΦ17ｘ6	2430±10%	≤0.5%	≤1.0%	34.8±5%	≤15	315	≥45	≥800
Φ50ｘ3	5800±10%	≤0.5%	≤1.0%	46±5%	≤10	681	≥50	≥800
